Contrast Media InjectorsApollo RT

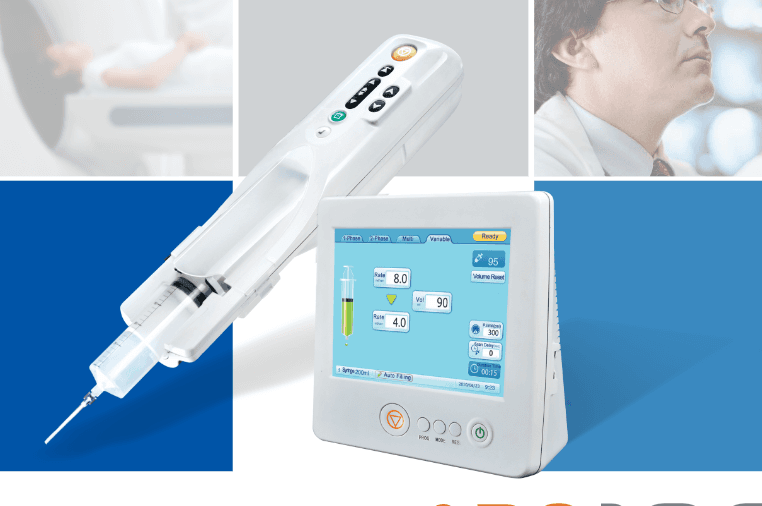

APO100 Contrast Media Injector
“Dedicated CT contrast injection system for safe and efficient imaging”
Product Overview
The APO100 Contrast Media Injector is a dedicated CT contrast injection system designed to provide safe, accurate, and efficient contrast‑enhanced examinations. Combining intuitive operation with advanced injection control, the APO100 improves workflow while maintaining high standards of patient safety and imaging performance.
Key Features
Dedicated contrast media injector for CT imaging
Large LCD color touchscreen with user-friendly interface
Automatic syringe filling with one‑handed operation
Built‑in contrast media heat maintainer (38°C ±3°C)
Safety Confirmation Key to prevent unintended injections
Waterproof soft‑touch control buttons
Stores up to 80 customized injection protocols
Real‑time monitoring of pressure, flow rate, and injected volume
Automatic pressure management for safer injections
Supports single, dual, multi‑phase, and variable flow rate injections
Variable Flow Rate technology for optimized contrast enhancement
Syringe and plunger protection cover to reduce contamination risk
Adjustable injector head with mobile pedestal and optional ceiling mount
High‑pressure disposable syringe system for reliable operation
Specifications
| Injector Type | Dedicated Contrast Media Injector for CT |
| Applications | CT Contrast‑Enhanced Examinations |
| Flow Rate | 0.1–10.0 ml/s (0.1 ml/s increments) |
| Injection Volume | 1–200 ml |
| Pressure Limit | 300 PSI |
| Injection Modes | Single Phase, Dual Phase, Multi‑Phase, Variable Flow Rate |
| Scan Delay | 0–300 s |
| Phase Delay | 0–300 s |
| Heating System | Built‑in Temperature Control (38°C ±3°C) |
| Protocol Memory | Up to 80 customized protocols |
| Display | Large LCD Color Touchscreen |
| Power Supply | AC 115/230 V, 50/60 Hz |
| Power Consumption | 100 VA |
| Installation Options | Mobile Pedestal (Standard), Ceiling Mount (Optional) |
| Consumables | 100 ml and 200 ml Syringe Systems |
