Contrast Media InjectorsApollo RT

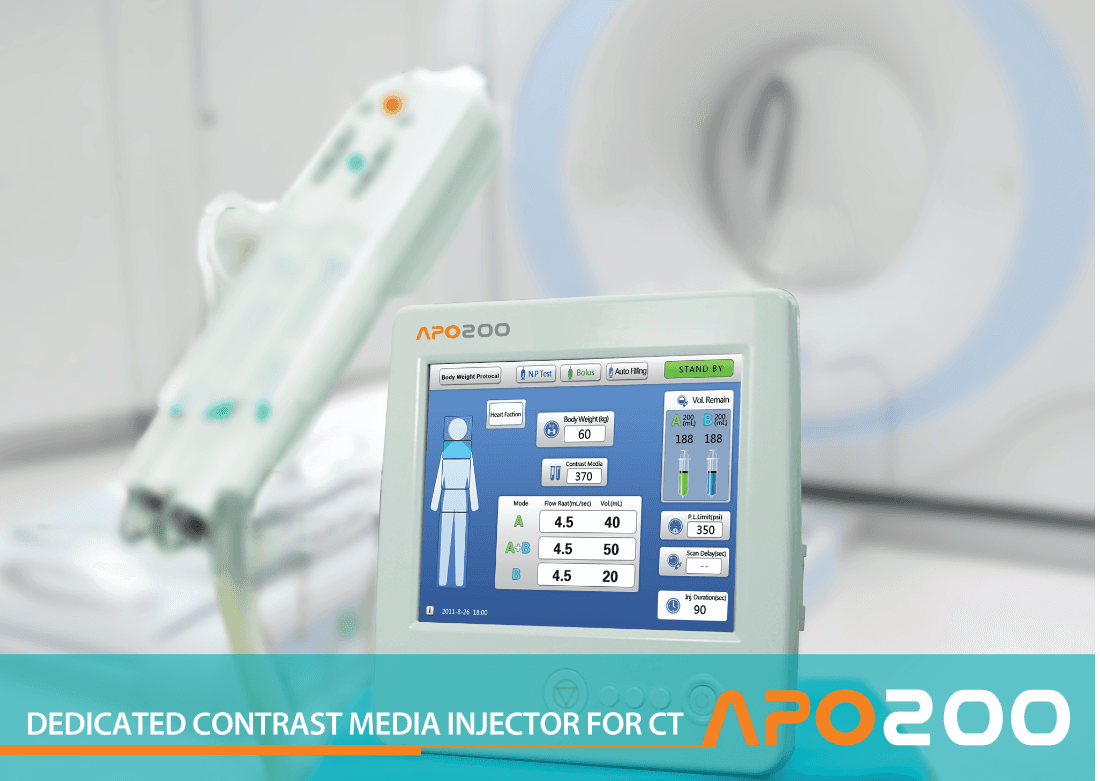

APO200 Contrast Media Injector

“Advanced dual‑syringe CT contrast injector for complex imaging protocols”

Product Overview

The APO200 Contrast Media Injector is an advanced dual‑syringe injector designed for CT contrast‑enhanced imaging, combining intelligent automation, precise injection control, and comprehensive safety features. Engineered to improve workflow efficiency and image quality, the system supports complex CT protocols while providing reliable and reproducible contrast delivery.

With proprietary Variable Flow Rate technology, smart protocol generation, real‑time pressure sensing, and dual‑syringe operation, the APO200 is ideal for demanding clinical applications such as cardiac CTA, pulmonary embolism studies, and peripheral vascular imaging. Its intuitive touchscreen interface, built‑in syringe heating, and flexible installation options make it a powerful solution for modern CT departments.

Key Features

Dedicated dual‑syringe contrast media injector for CT imaging

Variable Flow Rate technology for optimized contrast enhancement and reduced contrast media usage

Intelligent Smart Ancillary Injection System with automatic protocol generation

Supports contrast, saline flush, mixed injection, and three‑phase injection protocols

Large 10.4‑inch color LED touchscreen with multilingual user interface

High‑sensitivity real‑time pressure sensor for accurate pressure monitoring

Automatic pressure control for enhanced patient safety

Built‑in heat maintainer (38°C ±3°C)

LED illumination for easy air bubble detection

Transparent protective injector head cover for improved safety and visibility

Anti‑drop cap and rotating Luer Lock design

Suitable for cardiac CTA, peripheral run‑off, and pulmonary embolism (PE) studies

Mobile pedestal as standard with optional ceiling‑mounted configuration

Reliable software update support and after‑sales service

Specifications

Injector Type	Dual‑Syringe Contrast Media Injector for CT
Applications	CT Contrast‑Enhanced Imaging
Flow Rate	0.1–10.0 ml/s (A & B syringes)
Injection Volume	1–200 ml per syringe
Maximum Pressure	350 PSI
Injection Modes	Multi‑phase, Three‑Phase, Contrast & Saline Injection, Variable Flow Rate
Scan Delay	0–300 s
Interphase Interval	0–300 s
Heating System	Built‑in Temperature Control (38°C ±3°C)
Pressure Monitoring	High‑Sensitivity Real‑Time Pressure Sensor
Display	10.4‑inch Color LED Touchscreen
Power Supply	115/230 VAC, 50/60 Hz
Power Consumption	260 VA
Installation Options	Mobile Pedestal (Standard), Ceiling Mount (Optional)
Consumables	100 ml and 200 ml Syringe Systems
